Perfect-Torque™ Sanitary Clamp Nut Only

Material

304 Stainless Steel, 316 Stainless Steel

Inquire about this product

Description

CGS™ Perfect-Torque™ controlled compression clamp nut will minimize the problem of gasket intrusion into product flow. When a gasket is over tightened, it can intrude into the pipes. This can affect product flow, cause shear and change texture. In pharmaceutical applications maintaining delicate cell structure and protein folding is critical. When sanitary process lines have gasket intrusion it’s a perfect place for microbial contaminants to propagate.



When a gasket becomes abraded, you can get fine particles that make the product polluted or impure. If a gasket is under tightened it leaves a concave groove. This concave groove is a place for soiling, creep and microbial propagation. Perfect-Torque™ Clamp Nut



Perfect-Torque™ controlled compression clamp nut allows you to use just enough torque to get a perfect smooth inner bore.



No seal intrusion from over-tightening. No concave grooves from under-tightening. You can control the exact compression to a constant pound inch of torque.

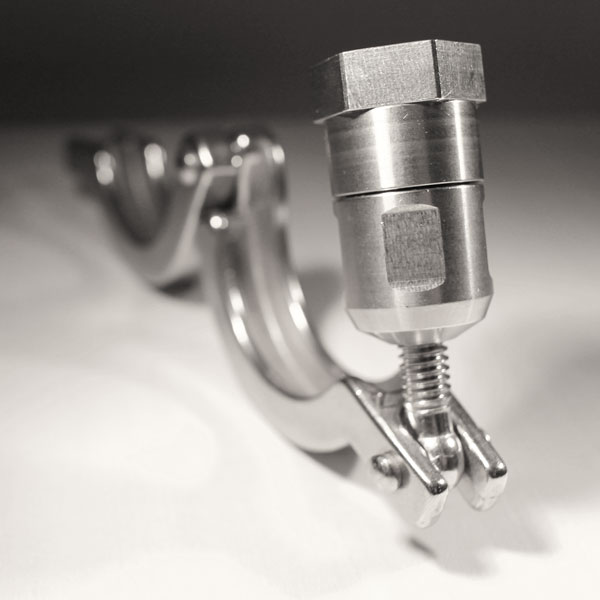

The clamp nut is like a built-in torque wrench just tighten until it clicks. As you compress the gasket, it will expand and when the gasket meets the proper torque it also meets the inner bore. With the perfect torque you get a smooth inner bore.



Also, controlled compression clamp nuts are used throughout the food, beverage, dairy, pharmaceutical and biotech sanitary process industries.



These clamp nuts comes standard for sanitary clamp Tri-Clamp®







Perfect-Torque™ Clamp Nut



  • Increases uptime
  • No gasket extrusion into the I.D.
  • Smooth Inner Bore
  • No over Tightening Extends service life
  • Easy to maintain
  • Sealing Stability
  • Easy to Install
  • Lower Bacteria Counts
  • Enhances Product Integrity
  • Leak-proof performance
  • Audible Click
  • Maintains Constant pound inch of Torque
  • Retrofits all Sanitary Clamps Tri-Clamp®
  • No Under Tightening





Standard Clamps are available see CGS™ Clamps



Elastomeric sanitary gaskets and seals have a required periodic replacement cycle. Gaskets and seal materials may be influenced by qualifications and age decline. Gaskets and seal life is influenced by the seal material type, application, Steam In Place (SIP), temperature, chemicals, cleaning procedures, and other qualifying factors. Maintenance and inspection should be part of all SOP (standard operating procedures).









CGS-PT30 30 Pound Inches

Gasket Material Types PT30:



CGS-PT50 50 Pound Inches

Gasket Material Types PT50:

  • Flexi-Steel™
  • PTFE
  • Flex Ti™ Titanium Super Flex
  • PTFE Envelope









Perfect-Torque™ Specifications

Material: 440C Corrosion Resistant Stainless Steel

Hardness:  48 Rockwell

Overall Height: 1.670″ Driving Hex:  .875 (7/8″)

Diameter: .875″ Override Flats:  .8125 (13/16″)

Part NumberApplication
CGS-PT-30Elastomers
CGS-PT-50PTFE / Flexi-Steel™
