Description

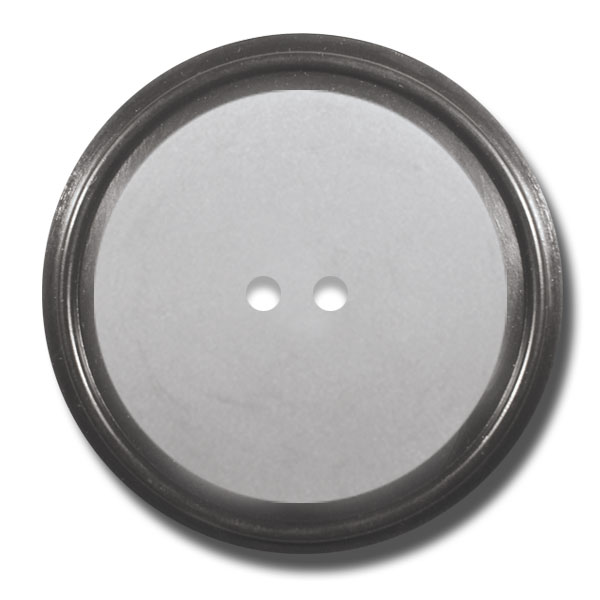

CGS™ Steam Stopper™ Orifice Plates lets condensate escape while keeping live steam from flowing through. When the Orifice Plates are sized properly for flow conditions, they operate very efficient, as good as any conventional Traps. Office Plate Steam Traps have no moving parts. The operation of the Orifice Plate Trap is mainly based on the difference in the density between water and steam. With an Orifice Plate the condensate will flow through the Orifice at a much lower velocity. This is because Condensate density is about 1000 time greater than that of Steam.
Flow conditions when sized properly will allow the condensate to stop the steam. Orifice Plate Traps will arrest the Steam and stop it from leaking through. This is a simple condensate removal device. CGS™ offers a wide range of Steam Stopper™ Gaskets with options like Flex Ti™ or Flexi-Steel™. These are High Temperature Elastomer or Fluor Elastomer made of Titanium or 316L Passivated Stainless Steel. Steam Stopper™ are designed to be interchangeable with standard sanitary Tri-Clamp™ Gaskets.
In addition, the gaskets are used in the most demanding applications in the Food, Beverage, Dairy, Pharmaceutical and Biotech Sanitary Process Industries.
Sizes: ½”, ¾”, 1”, 1 ½ “, 2”
- High Temperature Flex Ti™ Titanium with 316L Passivated Stainless Steel Plate
- High Temperature Flexi-Steel™ with 316L Passivated Stainless Steel Plate
- PTFE (TFM) with 316L Passivated Stainless Steel Plate
- High Temperature FKM with 316L Passivated Stainless Steel Plate
- Solid High Temperature Flex Ti™ Titanium
- Solid High Temperature Flexi-Steel™
- Materials FDA, USP Class VI.
Additional Materials and MDXD™ Metal Detectable X-Ray Detectable consult CGS™
This is Available in High Temperature Flex Ti™ Titanium
Steam Stopper™ Trap Features
- Steam Resistant Materials
- Outstanding Durability
- Tabbed Plate Identification
- High Temperature
- Extended Service Life
- Can be used for high-pressure steam Applications
- Performance can be computed if the condensate load, inlet and outlet pressures are known
- Continuous Discharge
- No moving parts
- Easy to maintain
- Cannot fail open
- Relatively low initial cost
- Resistant to damage by water hammer and thermal shock
- Pressure drop across the orifice reduces potential overpressure of the downstream condensate system
- Resistant to freeze damage
- Can be mounted in several positions
- Excellent Chemical Resistance
- Sealing Stability
- FDA, USP Class VI Materials
- Electro Polished Plate Finishes for No Stick and Corrosion resistance
- Holes Drilled to Specifications
- Blank Plates Available
- Flexi-Steel™ & Flex Ti™
CGS™ Steam Stopper™ Orifice Plates can be found in many validated High Purity Water Systems. Some applications include CIP, SIP, WFI, Multi-Effect Stills, Vapor Compression and Distillation Systems. Our Steam Stopper™ Orifice Plates are regularly being used as an alternative for a standard Steam Trap. Here are some of our materials.
Sanitary Steam Stopper™ Orifice Plates Trap Gaskets meet FDA, USP Class VI Criteria, FDA Title 21 CFR 177 .2600, FDA Title 21 CFR 177 .1550, Current Good Manufacturing Practices (CGMP), ASME, Animal Derived Ingredient Free (ADI), FDA Compliant Mold release. BUNA-N is FDA Only.
