Description

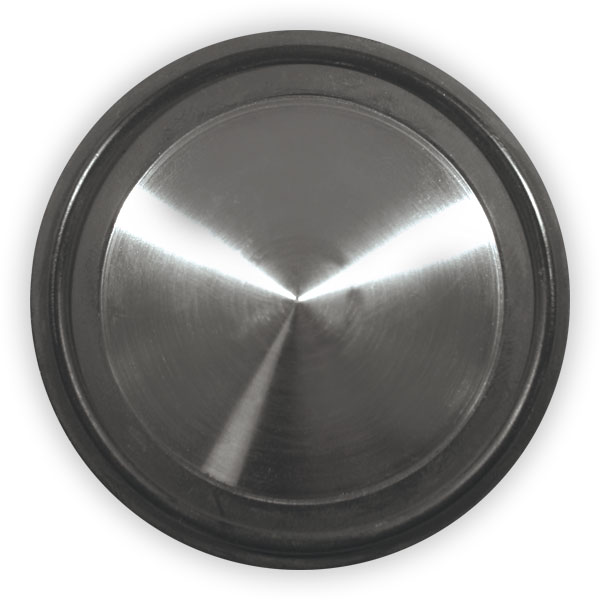

CGS™ offers a wide range of Vertical Orifice Plate Gaskets with sanitary connections. Today’s systems must achieve optimum performance, while maintaining their sanitary integrity. Vertical Orifice Plates offer solutions for backflow pressure, systems balance, flow rates and other performance enhancing operations. These are designed to be interchangeable with standard Sanitary Clamp gaskets.
Vertical Orifice Plate Gaskets Sizes: ½” to 8”
- BUNA-N (FDA Only) – 316L SS
- EPDM – 316L SS
- FKM – 316L SS
- PTFE – 316L SS
- Platinum Cured Silicone – 316L SS
- Flexi-Steel™ – 316L SS
Materials FDA, USP Class VI. BUNA-N (FDA Only)
- Steam Resistant Materials
- Vertical Self Draining
- Eccentric Bore Designs
- Orifice Plate Steam Traps
- High Temperature Resistant
- MDXD™ Metal Detectable
- Stay in Place Alignment (SIPA™)
- Electro Polished Finishes
- Non-Metallic Options
- Holes Drilled to Specifications
- Blank Plates Available
Available in FDA, USP Class VI Compliant Materials with Certification.
Vertical Orifice Plate Gaskets meet FDA, USP Class VI Criteria, FDA Title 21 CFR 177 .2600, FDA Title 21 CFR 177 .1550, Current Good Manufacturing Practices (CGMP), ASME, Animal Derived Ingredient Free (ADI), FDA Compliant Mold release. BUNA-N is FDA Only.
